Pneumatic O Type Two Piece Flanged Ball Valve

O type cut-off ball valve is a two-piece ball valve structure. The valve body is composed of two parts, the main and auxiliary parts, the seat wear is small, the seal is good, the service life is long, has a strong cutting performance. Ball core adopts full diameter, rated flow coefficient is large, flow resistance is small. Seat limit structure design, maintain torque stability; Lower-mounted stem anti-fly out design, valve seat sealing ring fire-proof, anti-static design.

Pneumatic Segment Ball Valve

Segment valve is a right angle rotary control valve, its main use for regulating valve, can also be used as a switch valve. V-valve spool is designed with special shape V-notch, so it has great shear force and self-cleaning function. Suitable for the control of medium containing fiber or small solid particles. Therefore, this product is widely used in papermaking, chemical industry, petroleum, chemical fiber, electric power, metallurgy, pharmaceutical, environmental protection and other industrial departments of automatic control system.

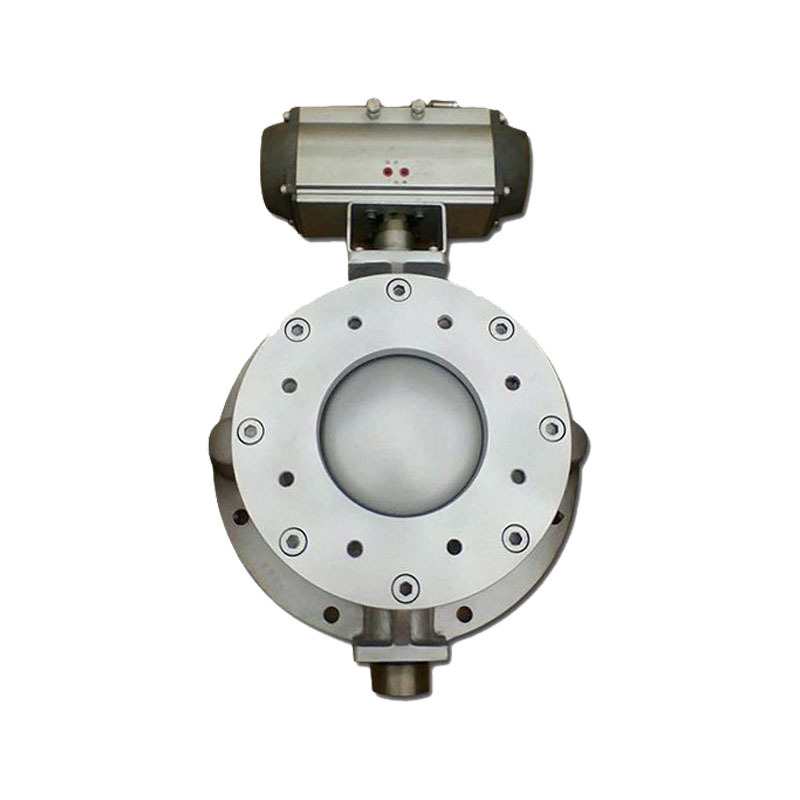

Pneumatic Flange Discharge Feed Ceramic Wear Resistant Dome Ball Valve

Pneumatic flange feed ceramic wear-resistant dome valve is a kind of valve specially used for fluid control, mainly used in dust, particulate matter and other solid particle material conveying system, can realize the fluid fast switching, flow control and prevent material plugging material sticking and other functions. The valve is made of ceramic body and seat, with wear resistance, corrosion resistance, high temperature resistance and other characteristics, can ensure the normal operation in harsh environment.

Pneumatic O Type Cut off High Temperature High Pressure Ash Discharge Ball Valve

The ball valve is made of metal alloy material, has the characteristics of wear resistance, corrosion resistance, high temperature resistance and high pressure resistance. The valve adopts O-type sealing structure, good sealing performance, and is difficult to leak. The valve uses spring negative pressure self-sealing structure, can ensure the normal work in high temperature and high pressure environment. The valve has fast opening and closing speed, fast response, and achieves fast shut-off. Ball valve internal channel design is reasonable, can avoid jam and blockage phenomenon.

Pneumatic Four Way Cast Steel Stainless Steel Reversing Ball Valve

Pneumatic four-way cast steel stainless steel reversing ball valve is a commonly used fluid control valve, mainly used for liquid, gas and other fluid media control and regulation. The ball valve adopts four-way structure, which can realize fluid reversing, shunt, confluence, adjustment and other functions. The valve uses a ball structure inside the valve. When the actuator applies power, the valve ball can quickly rotate 90 degrees to achieve rapid fluid cut-off or control.

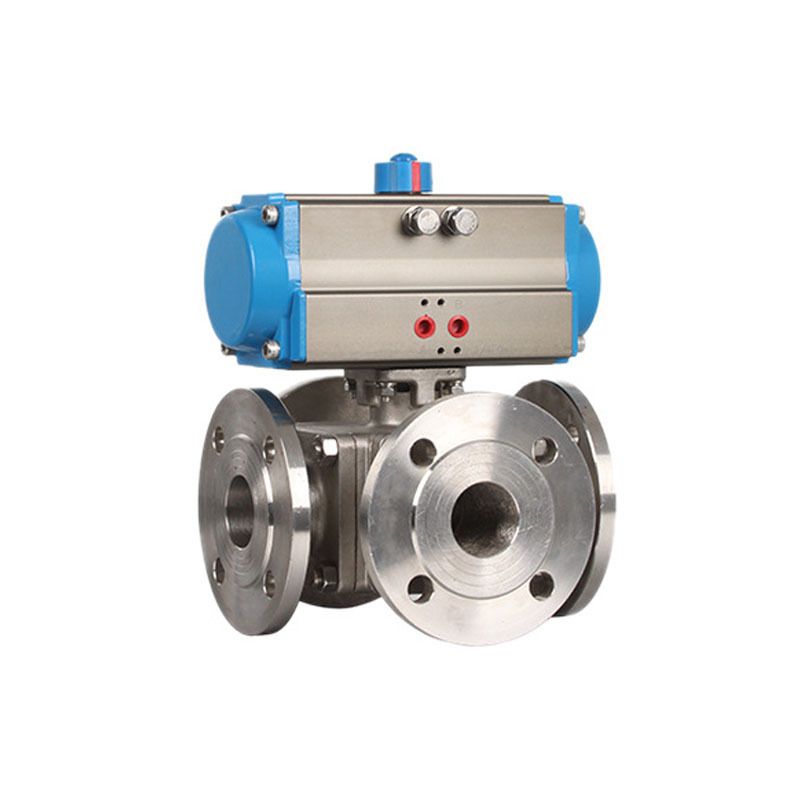

Pneumatic Three Way Flange T L Shaped Soft and Metal Sealed Ball Valve

Pneumatic three-way flange cast steel stainless steel T L shaped soft and metal sealed ball valve has T or L type structure, can realize the flow of shunt, confluence, adjustment and other functions; Ball valve internal ball structure, when the actuator applied power, the valve ball can quickly rotate 90 degrees to achieve rapid fluid cut-off or control. Different flange connection modes can be selected, such as flat flange, flange connection, suitable for different installation environment.

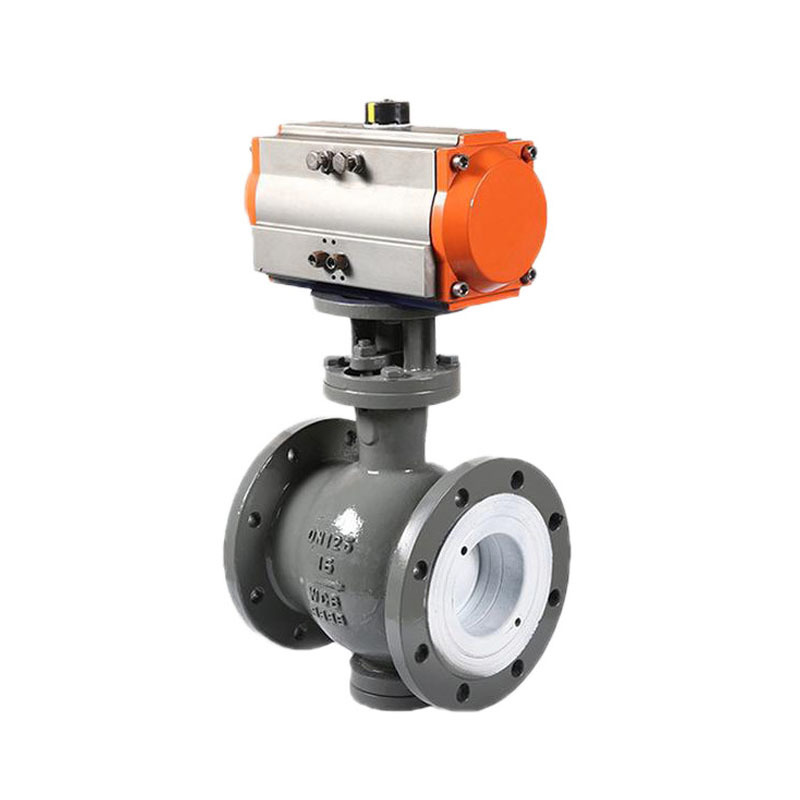

Pneumatic Top Mounted Side Mounted Eccentric Hemisphere Ball Valve

Pneumatic cast steel stainless steel mounted side mounted eccentric half ball valve with eccentric hemisphere structure, has good fluid control performance and sealing performance, can achieve rapid fluid cut-off or control, suitable for a variety of media. It can choose top or side mounted structure, suitable for different installation environment.

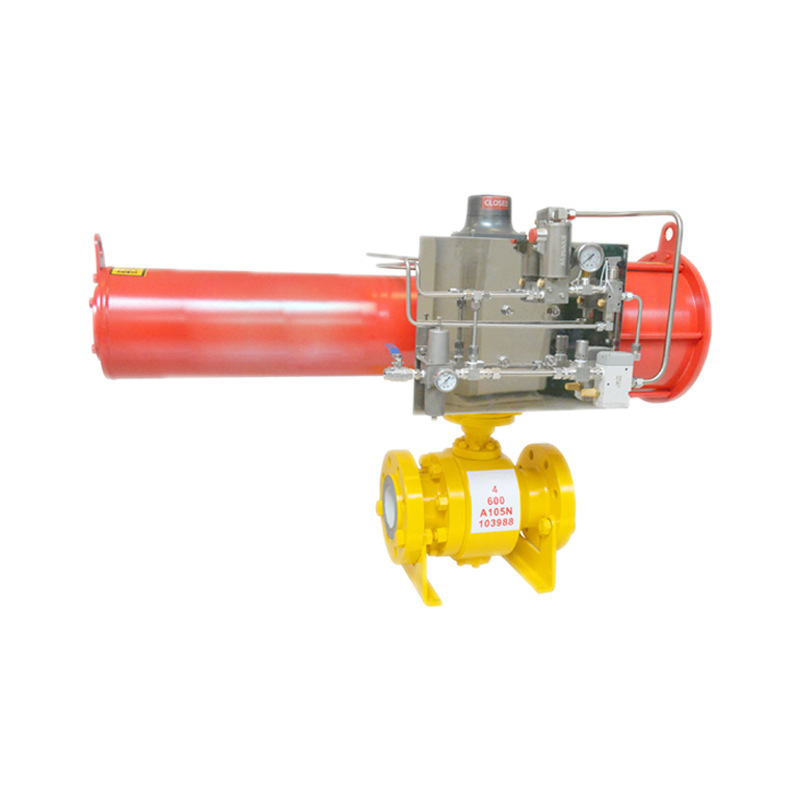

Pneumatic Fixed Emergency Shut off Ball Valve

The valve adopts the sphere structure inside, the sphere is equipped with sealing ring, when the pneumatic actuator exerts power, the sphere can quickly rotate 90 degrees, so as to realize the rapid cutting of the fluid. Pneumatic fixed emergency cut off ball valve compact structure, easy to operate, suitable for fluid control of various media.

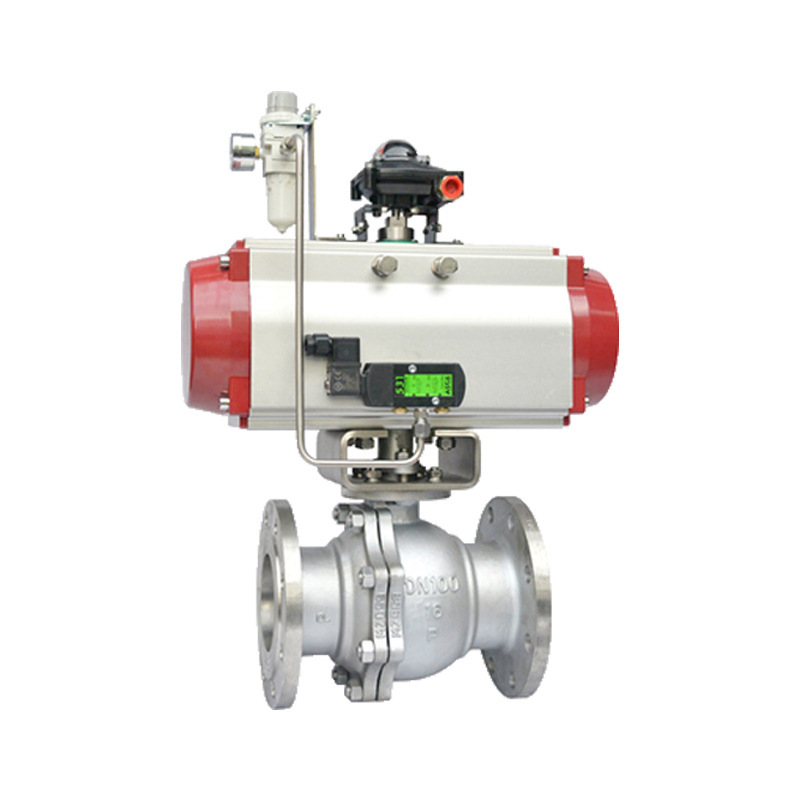

Pneumatic Flange Cast Steel Stainless Steel Soft Sealing O Ring Quick Cut off Ball Valve

The characteristics of the valve is that the internal structure of the ball, the ball is equipped with an O-ring, the valve is switched on and off, through the power of the pneumatic actuator, so that the ball rotates 90 degrees, so as to realize the rapid cutting of the fluid. The O-ring has the characteristics of good sealing and long service life, which can ensure the sealing performance of the valve and is suitable for fluid control of various media.

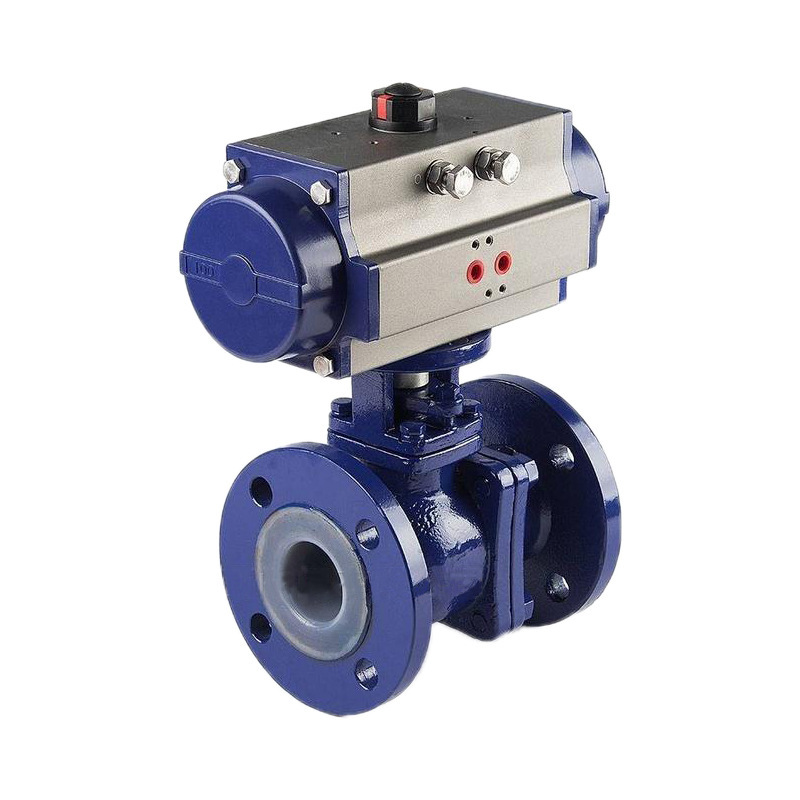

Pneumatic Fluorine Lined Wear Resistant and Anti Corrosion PTFE Ball Valve

Pneumatic fluorine lined wear-resistant and anti-corrosion PTFE ball valve is a commonly used fluid control valve, the internal ball and seat with four-fluorine lined structure, so that it has strong corrosion resistance; In addition, the ball surface also uses wear-resistant materials, so that it has better wear resistance, suitable for some media containing particulate matter occasions.
